ICF122 - Complete geared motor for AF-MF26-MF36 code 79422513R Please indicate the model and serial number of your machine, as these are essential
1.387,50 € HT
Prix Nets H.T. en Euros — Tarif 2026 — prix révisables sans préavis — installation non comprise.
Scotsman Grains — Série AF
for ice makers
Genuine spare parts. List of the most common wear parts — other parts on request.
Please state the model, serial number and refrigerant of your machine when ordering.

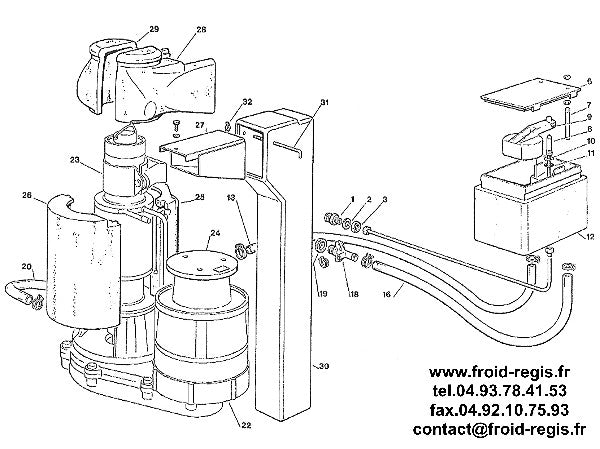

AF-MF26-MF36 - PRODUCTION DE GLACE
| Ref. | Part number | Photo | Description | Price € excl. VAT | Action |
|---|---|---|---|---|---|
| 22 | ICF122 - Complete geared motor for AF-MF26-MF36 code 79422513R Please indicate the model and serial number of your machine, as these are essential | 1.387,50 € | in stock | ||
| 12 | ICF112 - Float chambercode 79312601 or 66045900 Please provide your machine's model and serial number—they are essential | 172,50 € | in stock | ||
| 08 | ICF108R - Plastic water inlet jet retrofit kitcode 06074200replaces code 79315300Please provide the model and serial number of your machine;they are essential | 95,00 € | in stock | ||
| 07 | ICF107 - Water level probe code 29070018 replaces code 72421506 Please indicate the model and serial number of your machine, as they are essential | 27,50 € | in stock |
ICF112 - Float chambercode 79312601 or 66045900 Please provide your machine's model and serial number—they are essential
172,50 € HT
ICF108R - Plastic water inlet jet retrofit kitcode 06074200replaces code 79315300Please provide the model and serial number of your machine;they are essential
95,00 € HT
ICF107 - Water level probe code 29070018 replaces code 72421506 Please indicate the model and serial number of your machine, as they are essential
27,50 € HT
AF-MF26-MF36 - RÉDUCTEUR ÉVAPORATEUR
| Ref. | Part number | Photo | Description | Price € excl. VAT | Action |
|---|---|---|---|---|---|
| 32 | ICF332 - Clutch coupling kitcode 06035900 | 124,17 € | in stock | ||
| 29 | ICF329 - Oil seal code 64001901 | 38,33 € | in stock | ||
| 28B | ICF328B - Washer thk 0.8 mmint.dia.13 x ext.dia.22 mmcode 03140804 | 24,17 € | in stock | ||
| 28A | ICF328A - Washer thk. 1.5mmint.dia.23 x out.dia.29 mmcode 44180800 | 23,33 € | in stock | ||
| 27 | ICF327 - Output gearcode 65116201 | 190,83 € | in stock | ||
| 26 | ICF326 - Washer thk. 0.8 mmint.dia. 10 x ext.dia. 19 mmcode 44180007 | 19,17 € | in stock | ||
| 25 | ICF325 - Washer thk 0.3 mmint.dia.10 x out.dia.14 mmcode 44180008 | 16,67 € | in stock | ||
| 24 | ICF324 - Idler gearcode 65116100 | 150,83 € | in stock | ||
| 23 | ICF323 - Washer thk 0.3 mmint.diam. 8.5 x ext.diam. 14 mmcode 44180006 | 23,33 € | in stock | ||
| 22 | ICF322 - Washer thk. 0.8 mmint.dia. 8.5 x ext.dia. 14 mmcode 44180005 | 20,00 € | in stock | ||
| 21 | ICF321 - Celeron gear code 65116000 | 99,17 € | in stock | ||
| 09 | ICF309 - Rotor ASSYincludes parts 7,8,11 and 9code 65105600 | 268,33 € | in stock | ||
| 08 | ICF308 - Rotor washer, 12 mm ID x 16 mm ODcode 44180009 | 20,83 € | in stock | ||
| 07 | ICF307 - Rotorcode bearing 65105600 | 19,17 € | in stock | ||
| 06 | ICF306 - Oil sealPart number 64008300 | 31,67 € | in stock | ||
| 05 | ICF305 - Gasketcode 64008400 | 29,17 € | in stock | ||
| 03 | ICF303 - Gearbox grease 0.5 kgcode 06029404 | 113,33 € | in stock | ||
| 02 | ICF302 - Gearbox housing assemblycode 00101501 | 399,17 € | in stock | ||
| 41 | ICF341B - Grinder worm screwAF80 - code 72405208 Please provide your machine's model and serial number; they are essential | 589,17 € | in stock | ||
| 41 | ICF341A - Grinder worm gear AF30-AF156-AF206-MF36 code 72405206 Please provide your machine's model and serial number as they are essential. | 589,17 € | in stock | ||
| 41 | ICF341 - Worm screw grinder AF10-AF20-AF100-AF103-AF124AF200-MF26 - code 72405207 Please provide the model and serial number of your machine, as they are essential | 374,17 € | in stock | ||
| 52 | ICF352 - Non-freezing grease100 ml - Food grade NSF H1code 26361200 Technical Data Sheet Pdf | 49,17 € | in stock | ||
| 42 | ICF342 - SealAF-MF26-MF36code 64004000 Please indicate the model and serial number of your machine, they are essential | 129,17 € | in stock | ||
| 43 | ICF343 - Lower bearingAF-MF26-MF36code 67001101 Please provide the model and serial number of your machine, as they are essential. | 170,83 € | in stock | ||
| 47 | ICF347 - O-ringAF-MF26-MF36code 64004101 or 64010901 Please provide your machine's model and serial number—they are essential | 23,33 € | in stock | ||
| 48 | ICF348 - Upper bearing with crusher AF-MF26-MF36including parts: 48, 47 and 44code 06072000 Please indicate the model and serial number of your machine; they are essential | 518,33 € | in stock | ||
| - | ICF-KIT-F - Bearing, seal, and grease kit for AF-MF26-MF36 worm gear (to be replaced every 5 years) including parts: 44(47+48), 43, 42 and 52. Please provide your machine's model and serial number; they are essential. | 812,50 € | in stock |
ICF332 - Clutch coupling kitcode 06035900
124,17 € HT
ICF329 - Oil seal code 64001901
38,33 € HT
ICF328B - Washer thk 0.8 mmint.dia.13 x ext.dia.22 mmcode 03140804
24,17 € HT
ICF328A - Washer thk. 1.5mmint.dia.23 x out.dia.29 mmcode 44180800
23,33 € HT
ICF327 - Output gearcode 65116201
190,83 € HT
ICF326 - Washer thk. 0.8 mmint.dia. 10 x ext.dia. 19 mmcode 44180007
19,17 € HT
ICF325 - Washer thk 0.3 mmint.dia.10 x out.dia.14 mmcode 44180008
16,67 € HT
ICF324 - Idler gearcode 65116100
150,83 € HT
ICF323 - Washer thk 0.3 mmint.diam. 8.5 x ext.diam. 14 mmcode 44180006
23,33 € HT
ICF322 - Washer thk. 0.8 mmint.dia. 8.5 x ext.dia. 14 mmcode 44180005
20,00 € HT
ICF321 - Celeron gear code 65116000
99,17 € HT
ICF309 - Rotor ASSYincludes parts 7,8,11 and 9code 65105600
268,33 € HT
ICF308 - Rotor washer, 12 mm ID x 16 mm ODcode 44180009
20,83 € HT
ICF307 - Rotorcode bearing 65105600
19,17 € HT
ICF306 - Oil sealPart number 64008300
31,67 € HT
ICF305 - Gasketcode 64008400
29,17 € HT
ICF303 - Gearbox grease 0.5 kgcode 06029404
113,33 € HT
ICF302 - Gearbox housing assemblycode 00101501
399,17 € HT
ICF341B - Grinder worm screwAF80 - code 72405208 Please provide your machine's model and serial number; they are essential
589,17 € HT
ICF341A - Grinder worm gear AF30-AF156-AF206-MF36 code 72405206 Please provide your machine's model and serial number as they are essential.
589,17 € HT
ICF341 - Worm screw grinder AF10-AF20-AF100-AF103-AF124AF200-MF26 - code 72405207 Please provide the model and serial number of your machine, as they are essential
374,17 € HT
ICF352 - Non-freezing grease100 ml - Food grade NSF H1code 26361200 Technical Data Sheet Pdf
49,17 € HT
ICF342 - SealAF-MF26-MF36code 64004000 Please indicate the model and serial number of your machine, they are essential
129,17 € HT
ICF343 - Lower bearingAF-MF26-MF36code 67001101 Please provide the model and serial number of your machine, as they are essential.
170,83 € HT
ICF347 - O-ringAF-MF26-MF36code 64004101 or 64010901 Please provide your machine's model and serial number—they are essential
23,33 € HT
ICF348 - Upper bearing with crusher AF-MF26-MF36including parts: 48, 47 and 44code 06072000 Please indicate the model and serial number of your machine; they are essential
518,33 € HT
ICF-KIT-F - Bearing, seal, and grease kit for AF-MF26-MF36 worm gear (to be replaced every 5 years) including parts: 44(47+48), 43, 42 and 52. Please provide your machine's model and serial number; they are essential.
812,50 € HT

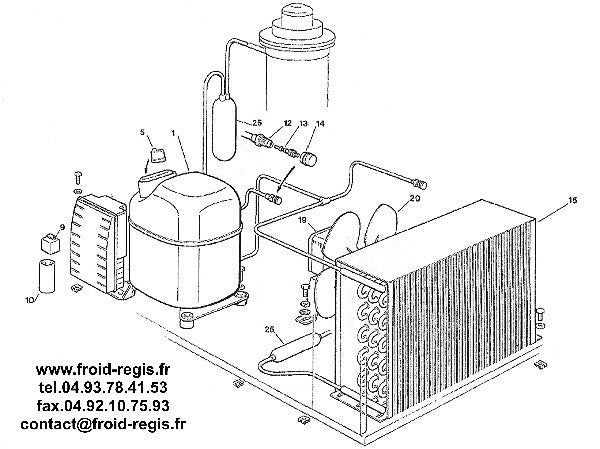

AF-MF26-MF36 - GROUPE AIR
Parts available on request
Parts for this machine are available on request. Please specify the reference, serial number and refrigerant used.

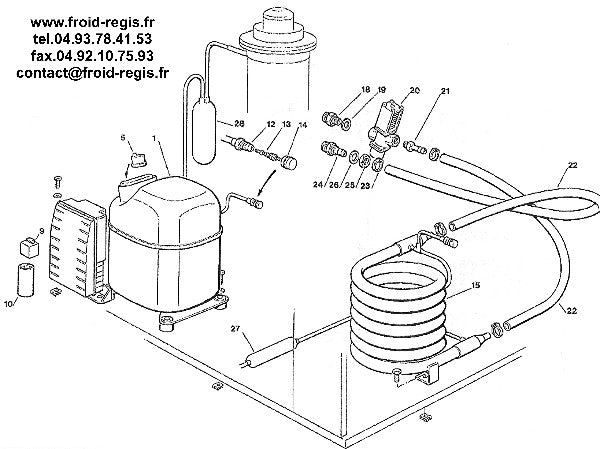

AF-MF26-MF36 - GROUPE EAU
Parts available on request
Parts for this machine are available on request. Please specify the reference, serial number and refrigerant used.

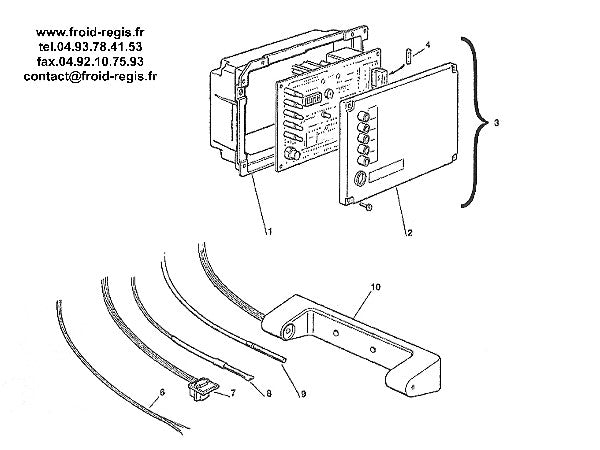

AF-MF26-MF36 - RÉGULATION
| Ref. | Part number | Photo | Description | Price € excl. VAT | Action |
|---|---|---|---|---|---|
| 10 | ICF210 - Ice level sensorAF-MF Please indicate your machine's model and serial number; they are essential | 120,00 € | in stock | ||
| 9 | ICF209A - Evaporator probe for new "NTC" board code 62051901 Please provide the model and serial number of your machine, as they are essential | 45,00 € | in stock | ||
| 9 | ICF209 - Evaporator probe for old "PTC" boardcode 62040410 Please indicate your machine's model and serial number; they are essential | 40,83 € | in stock | ||
| 8 | ICF208A - Condenser probe for new "NTC" board code 62051904 Please provide your machine's model and serial number; they are essential | 38,33 € | in stock | ||
| 8 | ICF208 - Condenser probe for old "PTC" boardcode 62040401 Please indicate your machine's model and serial numberthey are essential | 34,17 € | in stock | ||
| 7 | ICF207 - Hall-effect rotation sensor probe code 62040403 Please provide your machine's model and serial number; they are essential | 67,50 € | in stock | ||
| 6 | ICF206A - Water level sensor cable for new "NTC" board part no. 62051902 Please provide your machine's model and serial number; they are essential | 32,50 € | in stock | ||
| 6 | ICF206 - Water level sensor cablefor old "PTC" boardcode 62040413 Please provideyour machine's model and serial numberthey are essential | 28,33 € | in stock | ||
| 3 | ICF203A - Electronic board "NTC" - 2011F80c-F125c code 81414543F120-F200 code 62046215 Please provide your machine's model and serial number; they are essential | 360,00 € | in stock | ||
| 3 | ICF203B - "NTC" electronic board kit with condenser, evaporator, and water probes and "NTC" adapter code 06071111 Please provide your machine's model and serial number—they are essential | 665,83 € | in stock |
ICF210 - Ice level sensorAF-MF Please indicate your machine's model and serial number; they are essential
120,00 € HT
ICF209A - Evaporator probe for new "NTC" board code 62051901 Please provide the model and serial number of your machine, as they are essential
45,00 € HT
ICF209 - Evaporator probe for old "PTC" boardcode 62040410 Please indicate your machine's model and serial number; they are essential
40,83 € HT
ICF208A - Condenser probe for new "NTC" board code 62051904 Please provide your machine's model and serial number; they are essential
38,33 € HT
ICF208 - Condenser probe for old "PTC" boardcode 62040401 Please indicate your machine's model and serial numberthey are essential
34,17 € HT
ICF207 - Hall-effect rotation sensor probe code 62040403 Please provide your machine's model and serial number; they are essential
67,50 € HT
ICF206A - Water level sensor cable for new "NTC" board part no. 62051902 Please provide your machine's model and serial number; they are essential
32,50 € HT
ICF206 - Water level sensor cablefor old "PTC" boardcode 62040413 Please provideyour machine's model and serial numberthey are essential
28,33 € HT
ICF203A - Electronic board "NTC" - 2011F80c-F125c code 81414543F120-F200 code 62046215 Please provide your machine's model and serial number; they are essential
360,00 € HT
ICF203B - "NTC" electronic board kit with condenser, evaporator, and water probes and "NTC" adapter code 06071111 Please provide your machine's model and serial number—they are essential
665,83 € HT

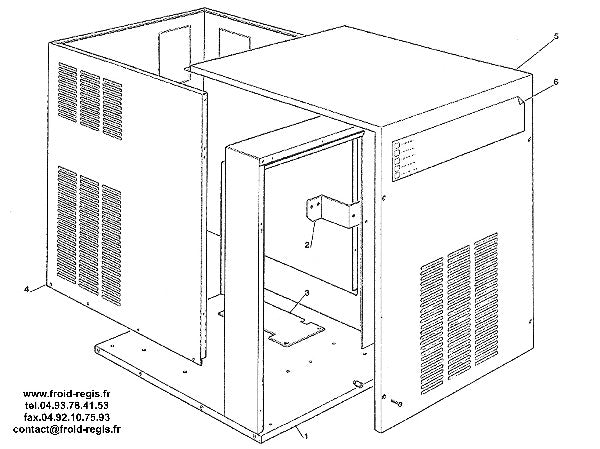

AF-MF26-MF36 - CARROSSERIE
Parts available on request
Parts for this machine are available on request. Please specify the reference, serial number and refrigerant used.
