Hoshizaki KM MODULAR Series – KM1301
Spare parts for Hoshizaki KM MODULAR series – KM1301. Check your machine model and the part number before ordering.

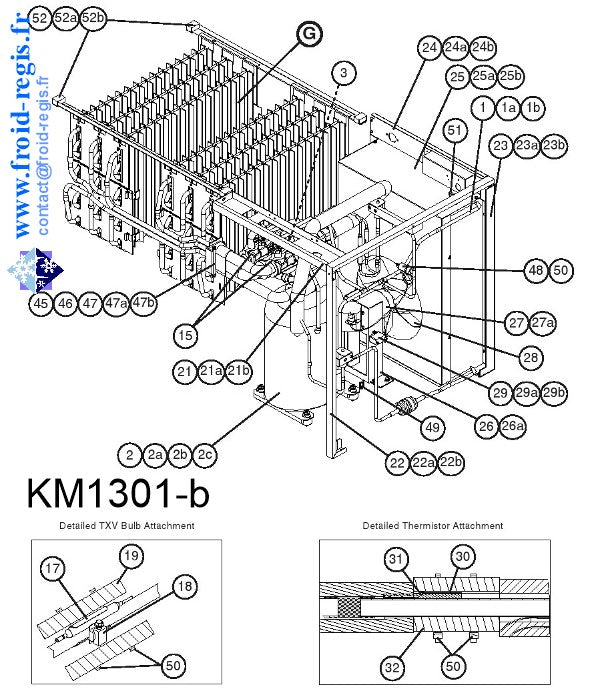

Diagram KM1301 - AIR-COOLED UNIT
| Ref. | Part number | Photo | Description | Price € excl. VAT | Action |
|---|---|---|---|---|---|
| B31 | HOS-KE23-15 - Thermistor for KM code 429006-03 Please provide the model and serial number of your machine they are essential | 87,00 € | in stock | ||
| B27 | HOS-KE08-25 - 230V/50-60Hz fan motor for KM320-515-650-1301 code 4A3158-01 Please provide the model and serial number of your machine, they are essential | 583,00 € | in stock |

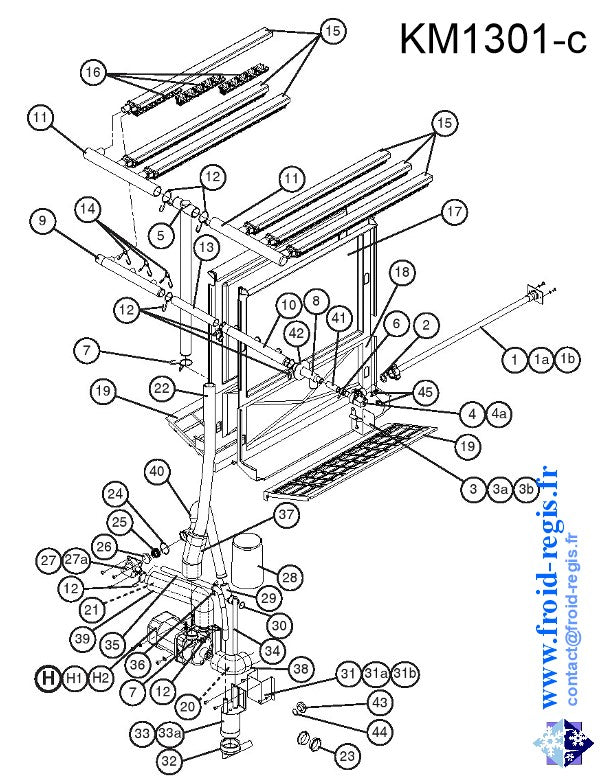

Diagram KM1301 - WATER CIRCUIT
| Ref. | Part number | Photo | Description | Price € excl. VAT | Action |
|---|---|---|---|---|---|
| C16 | HOS-KC07-15 - Spray guide for KM1301 code 208586-01 Please provide the model and serial number of your machine they are essential | 38,00 € | in stock | ||
| C04 | HOS-KD02-25 - Water inlet solenoid valve 230V/50-60Hz for KM515-650-1301 code 4A1176-06 Please indicate the model and serial number of your machine they are essential | 147,00 € | in stock | ||
| C33 | HOS-KB02-20 - Float switch for KM320-515-650-1301 code 4A3624-01 Please indicate the model and serial number of your machine they are essential | 259,00 € | in stock | ||
| H | HOS-KB03-30 - Water pump motor 230V/50-60Hz for KM1301 code 215692A04 Please indicate the model and serial number of your machine they are essential | 1.717,00 € | in stock |

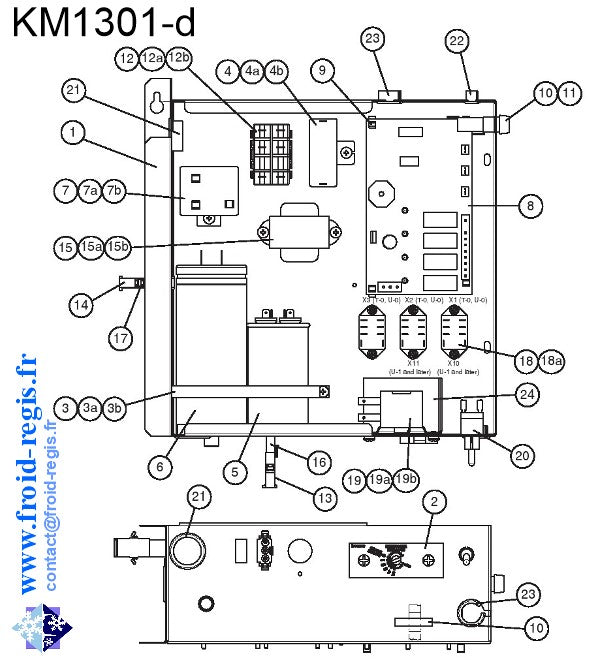

Diagram KM1301 - ÉLECTRONIQUE
| Ref. | Part number | Photo | Description | Price € excl. VAT | Action |
|---|---|---|---|---|---|
| D19 | HOS-KF18-15 - Storage thermostat kit for KM1301 code 428393-02 Please provide the model and serial number of your machine they are essential | 329,00 € | in stock | ||
| D20 | HOS-KF02-15 - Switch for KM Please provide the model and serial number of your machine; they are essential | 105,00 € | in stock | ||
| D12 | HOS-KF04-15 - 230V/50-60Hz power relay for KM New code 4A5096-01 Please indicate the model and serial number of your machine they are essential | 219,00 € | in stock | ||
| D15 | HOS-KF05-15 - 230V/50-60Hz transformer for KM code 3A0172-01 Please provide the model and serial number of your machine, they are essential | 139,00 € | in stock | ||
| D08 | HOS-KF06-25 - 230V/50-60Hz electronic board for KM320-515-1301 code 2A3792-01 Please indicate the model and serial number of your machine they are essential | 863,00 € | in stock |
