home / Spare parts / Flake ice machines / HOSHIZAKI / Serial FM-CM-KE
SPARE PARTS HOSHIZAKI
models for ice machines
(R134A-R404A-R452A)
FM-80KE(N), FM-150KE(N), FM-150KE50(N)
CM-140KE, FM-170AKE-SB(N)
(R290)
FM-60KE-HC, FM-80KE-HC(N), FM-120KE-HC(N)
FM-120KE-50-HC(N), FM-150AKE-HC(N)-SB
CM-50KE-HC
Prices in Euros excluding VAT - Tarif 2023/2024 - prices may be revised whithout notice - not including installation.
Spare parts original, below list of wear parts The most common, we can supply all other parts on request.
Define well when ordering the reference, the serial number and the gas used by your machine.
| Num. | References | Photos | Designations | Prices € excluding VAT |
|
|---|---|---|---|---|---|
| 11 | HOF-A11 |
 enlarge |

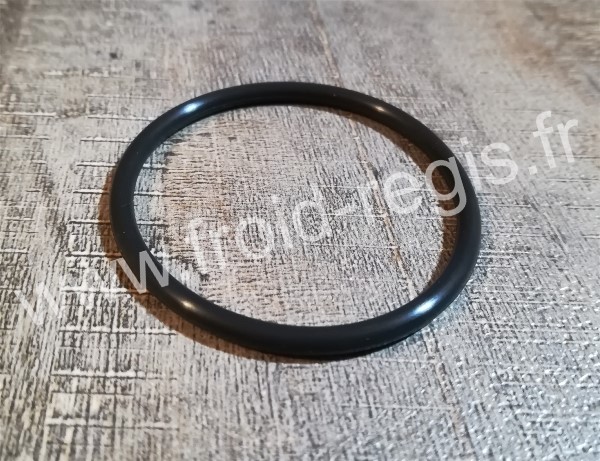

O-ring for FM80-150-170 CM140 for FM60-80-120-150 CM50(HC) code 7616-G045 Thank you to specify |
49 |
Shipping out  in stock or 48h |

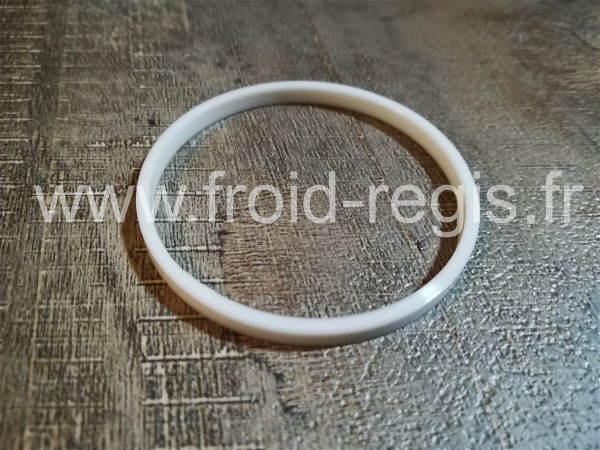

| 12 | HOF-A12 |
 enlarge |
Seal for FM80-150-170 CM140 for FFM60-80-120-150 CM50(HC) code 432661G01 Thank you to specify |
33 |
Shipping out in stock or 48h |
| 14 | HOF-A14-10 |
 enlarge |
Slope Lg. 258 mm x Ht. 289 mm for FM80-150 CM140 for FM80(HC)-120(HC) code 362588G01 for FM60 CM50(HC) code 362588G01 Thank you to specify |
128 |
Shipping out in stock or 48h |
| 14 | HOF-A14-15 |
|
Slope for FM150KE-50(-N) for FM120KE-50-HC(-N) code 362590G01 Thank you to specify |
273 |
Shipping out in stock or 48h |
| 37 | HOF-A37-10 |
 enlarge |

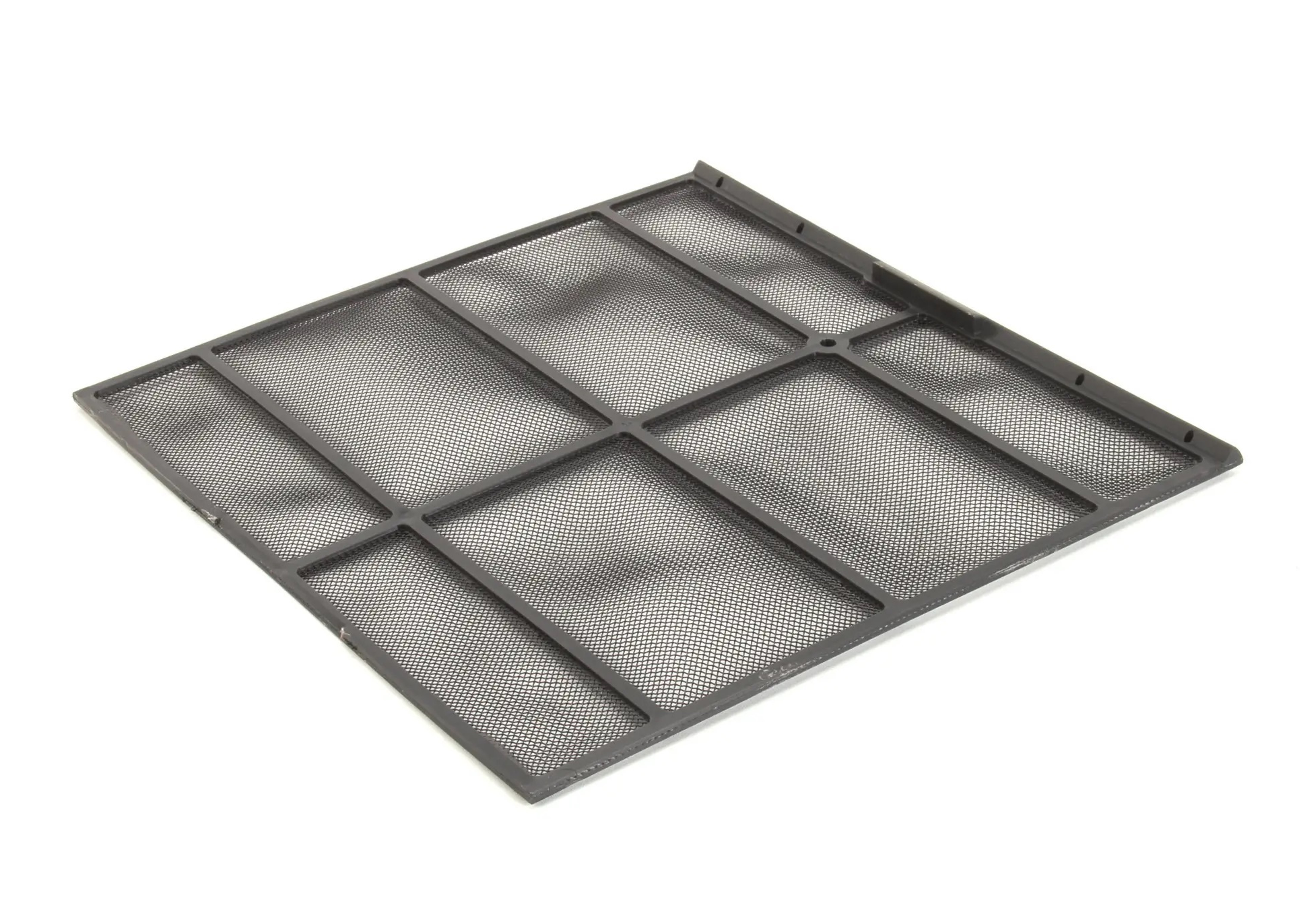

Air filter for FM80-150 CM140 for FM80(HC)-120(HC) code 2X0416G01 pour FM60 CM50(HC) code 3Y3496G01 Thank you to specify |
65 |
Shipping out in stock or 48h |
| 37 | HOF-A37-15 |
enlarge |
Air filter for FM170 - FM150(HC) code 26225901 Thank you to specify |
85 |
Shipping out in stock or 48h |
Other parts price on request

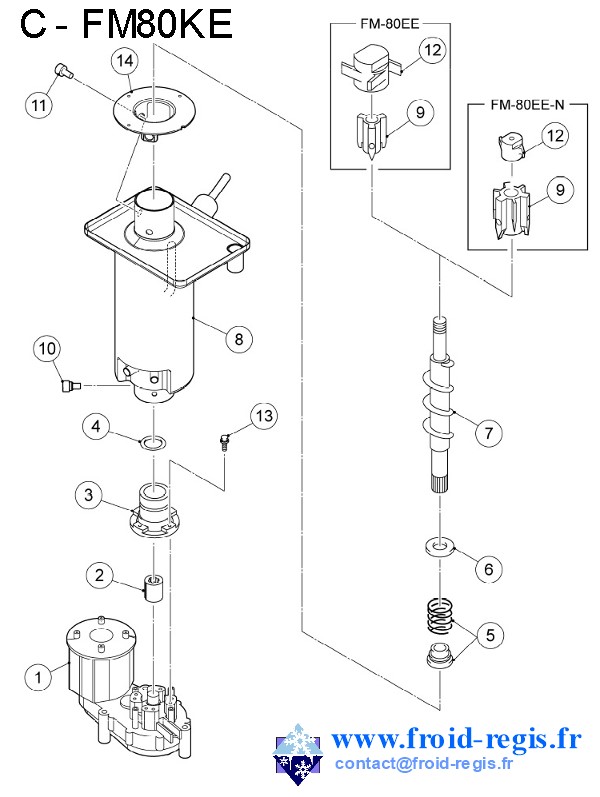

Gear motor - Evaporator :
| Num. | References | Photos | Designations | Prices € excluding VAT |
|
|---|---|---|---|---|---|
| 01 | HOF-KC01 |
 engrandir |
Gear motor 230V/50-60Hz for FM80-150-170 CM140 for FM60-80-120-150 CM50(HC) code P02068-02 Thank you to specify |
803 |
Shipping out in stock or 48h |
| 03 | HOF-C03 |
 agrandir |
Bottom bearing for FM80-150-170 CM140 for FM60-80-120-150 CM50(HC) New code 383613G02 Thank you to specify |
288 |
Shipping out in stock or 48h |
| 04 | HOF-C04 |
 engrandir |
O-ring for FM80-150-170 CM140 for FM60-80-120-150 CM50(HC) code 7616-G040 Thank you to specify |
54 |
Shipping out in stock or 48h |
| 05 | HOF-C05 |
 enlarge |
Mechanical seal for FM80-150-170 CM140 for FM60-80-120-150 CM50(HC) New code 432491-03 Thank you to specify |
175 |
Shipping out in stock or 48h |
| 06 | HOF-C06 | - | Ring(B) for FM80-150-170 CM140 for FM60-80-120-150 CM50(HC) code 432494-01 |
- | - |
| 07 | HOF-C07-10 |
 enlarge |
Auger for FM80-150-170 for FM60-80-120-150 CM50(HC) New code 269909G01 Thank you to specify |
644 |
Shipping out in stock or 48h |
| 07 | HOF-C07-15 |
 enlarge |
Auger for CM140 New code 269910G01 Thank you to specify |
664 |
Shipping out in stock or 48h |
| 08 | HOF-C08 |
 enlarge |
Evaporator for FM80-150-170 CM140 code 241041G02 Thank you to specify |
- |
Shipping out  on demand |
| 09 | HOF-C09 |
 enlarge |
Extruding head (Flakes) for FM80KE-150KE-170AKE for FM60KE-80KE-120KE-150AKE(HC) New code 327140G03 Thank you to specify |
313 |
Shipping out in stock or 48h |
| 09 | HOF-C09N |
 enlarge |
Extruding head (Nuggets) for FM80KEN-150KEN-170AKEN for FM80KEN-120KEN-150AKEN(HC) code 327141G01 Thank you to specify |
334 |
Shipping out in stock or 48h |
| 09 | HOF-C09CM |
 enlarge |
Extruding head (Cubelets) for CM140KE - CM50KE(HC) code 327236G01 Thank you to specify |
322 |
Shipping out in stock or 48h |
| 11 | HOF-C11 |
 enlarge |

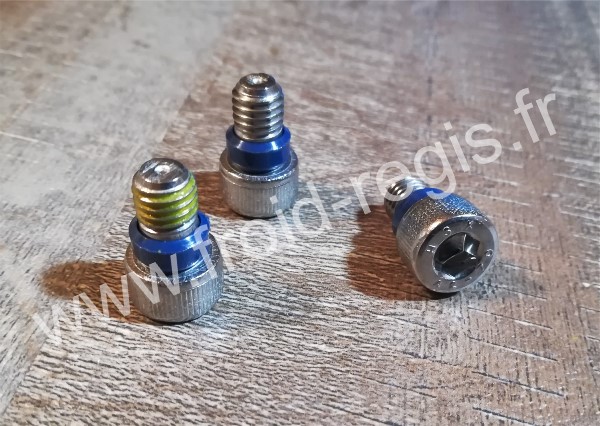

Sealbolt (x3) for FM80-150-170 CM140 for FM60-80-120-150 CM50(HC) code P01768-01 To be replaced at each dismantling |
48 |
Shipping out in stock or 48h |
| 12 | HOF-C12 |
 enlarge |
Cutter (Flakes) for FM80KE-150KE-170AKE for FM60KE-80KE-120KE-150AKE(HC) code 427137-01 Thank you to specify |
135 |
Shipping out in stock or 48h |
| 12 | HOF-C12N |
 enlarge |
Cutter (Nuggets) for FM80KEN-150KEN-170AKEN for FM80KEN-120KEN-150AKEN(HC) code 440905-01 Thank you to specify |
132 |
Shipping out in stock or 48h |
| 12 | HOF-C12CM |
 enlarge |
Cutter (Cubelets) for CM140KE - CM50KE(HC) code 439228G01 Thank you to specify |
136 |
Shipping out in stock or 48h |

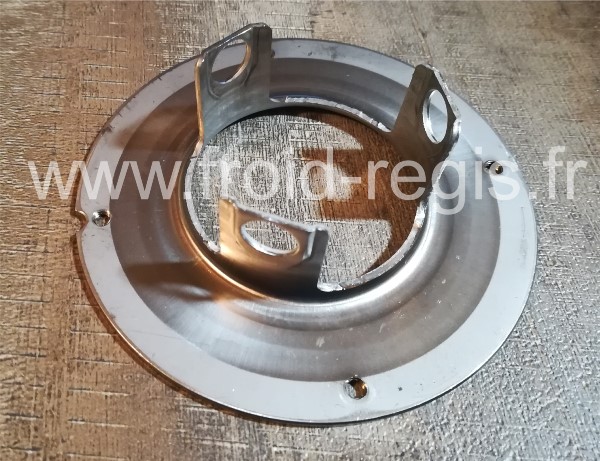

| 14 | HOF-C14 |
 enlarge |
Flange pour FM80-150-170 CM140 Thank you to specify |
- |
Shipping out in stock or 48h |
Other parts price on request
Water circuit :
| Num. | References | Photos | Designations | Prices € excluding VAT |
|
|---|---|---|---|---|---|
| 01 | HOF-D01 |
 enlarge |
Water valve 24V AC/DC for FM - CM code 452993-01 for FM60-CM50(HC)code P04521-01 Thank you to specify |
51 |
Shipping out in stock or 48h |
| 07 | HOF-D07 |
 enlarge |
Float switch for FM80 à 1800 - CM140 code 458279-01 pour FM60-CM50(HC)code 435490-01 Thank you to specify |
131 |
Shipping out in stock or 48h |
| 11 | HOF-D11 |
 enlarge |
Reservoir code 232626-01 pour FM60-CM50(HC)code 217620-03 Thank you to specify |
51 |
Shipping out in stock or 48h |
| 12 | HOF-D12 |
 enlarge |
Cover reservoir code 232627-01 pour FM60-CM50(HC)code 272299P01 Thank you to specify |
41 |
Shipping out in stock or 48h |
| D | HOF-D00 |
 enlarge |
Reservoir ASSY reservoir + cover + float switch Thank you to specify |
169 |
Shipping out in stock or 48h |
| 26 | HOF-D26 |
 enlarge |
Drain valve 24V for FM80 à 1800 - CM140 code 468655-01 pour FM60-CM50(HC)code P04521-01 Thank you to specify |
121 |
Shipping out in stock or 48h |
Other parts price on request

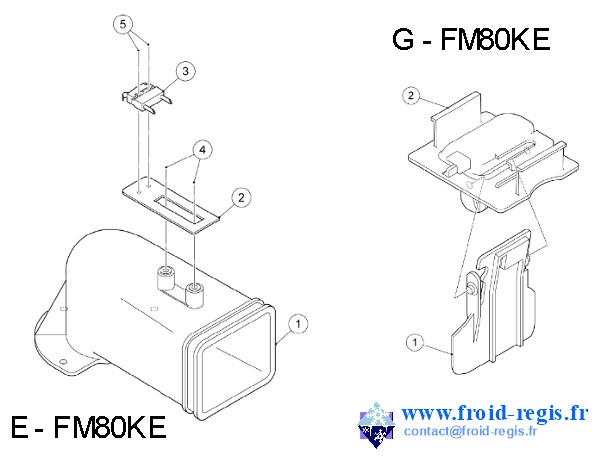

Stop production :
| Num. | References | Photos | Designations | Prices € excluding VAT |
|
|---|---|---|---|---|---|
| 01 | HOF-E01-10 |
 enlarge |
Spout for FM80-150 CM140 for FM60-80-120 CM50(HC) code 232636G01 Thank you to specify |
69 |
Shipping out in stock or 48h |
| 01 | HOF-E01-15 |
 enlarge |
Spout for FM170 for FM150(HC) code 2A0915-01 Thank you to specify |
91 |
Shipping out in stock or 48h |
| 03 | HOF-E03 |
 enlarge |
Micro switch for FM80 à 1800 - CM140 code 443992-02 for FM60-80-120 - CM50(HC) code 443992-02 Thank you to specify |
51 |
Shipping out in stock or 48h |
| - | HOF-EA50 |
 enlarge |
Bin switch for FM80 à 150 - CM140 for FM60-80-120 - CM50(HC) code 453861-02 Thank you to specify |
85 |
Shipping out in stock or 48h |
| - | HOF-EG09 |
 enlarge |
Bin switch for FM170AKE - FM150AKE(HC) New code 453861-04 Thank you to specify |
114 |
Shipping out in stock or 48h |
Other parts price on request

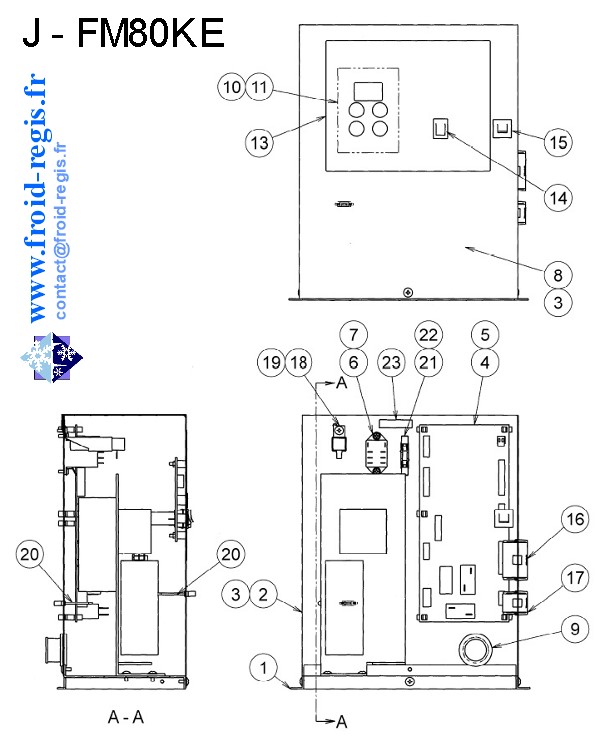

Regulation :
| Num. | References | Photos | Designations | Prices € excluding VAT |
|
|---|---|---|---|---|---|
| 04 | HOF-J04 |
 enlarge |
Controller board for FM-CM - code P01372-99 pour FM60-CM50(HC) - code P01372-23 Thank you to specify |
611 |
Shipping out in stock or 48h |
| 06 | HOF-J06 |
 agrandir |
Relay 230V/50-60Hz for FM-CM - code 406132-08 Thank you to specify |
73 |
Shipping out in stock or 48h |
| 11 | HOF-J11 |
|
Operation board for FM-CM - code P01373-01 Thank you to specify |
288 |
Shipping out in stock or 48h |
| 14 | HOF-J14 |
 enlarge |
Rocket switch for FM-CM - code 460681-01 Thank you to specify |
36 |
Shipping out in stock or 48h |
| A55 | HOF-JA55 |
 enlarge |

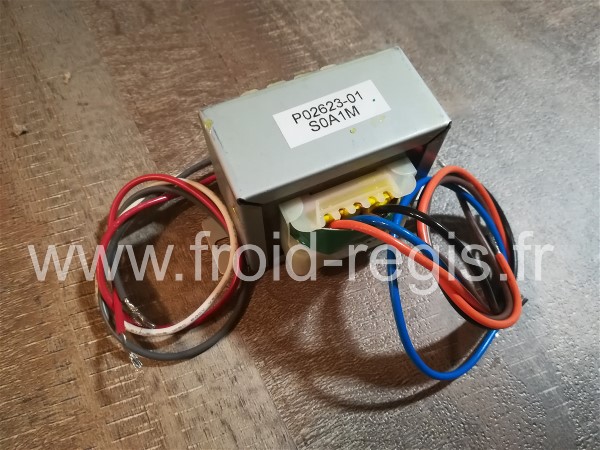

Transformer 230V for FM-CM - code P02623-01 Thank you to specify |
102 |
Shipping out in stock or 48h |
Other parts price on request
Refrigeration circuit :
| Num. | References | Photos | Designations | Prices € excluding VAT |
|
|---|---|---|---|---|---|
| 01 | HOF-M01-10 |
 enlarge |
Fan motor 230V/50-60Hz for FM80-FM80(HC) - code P00156-01 for FM60-CM50(HC) - code P00022-01 Thank you to specify |
117 |
Shipping out in stock or 48h |
| 01 | HOF-M01-15 |
enlarge |
Fan motor 230V/50-60Hz for FM150-170 CM140 for FM120-150(HC) - code P00022-01 Thank you to specify |
119 |
Shipping out in stock or 48h |
| 14 | HOF-M14-10 |
 enlarge |
Thermistor for FM60 à 170 - CM50-140 - code 476475G01 Thank you to specify |
55/td> |
Shipping out in stock or 48h |
Other parts price on request

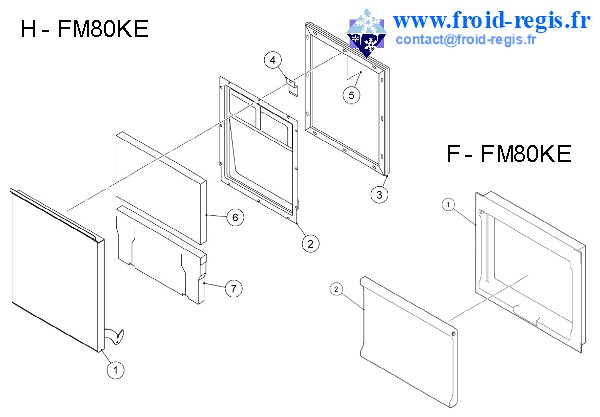

Door and slope :
| Num. | References | Photos | Designations | Prices € excluding VAT |
|
|---|---|---|---|---|---|
| 03 | HOF-F03-10 |
 enlarge |

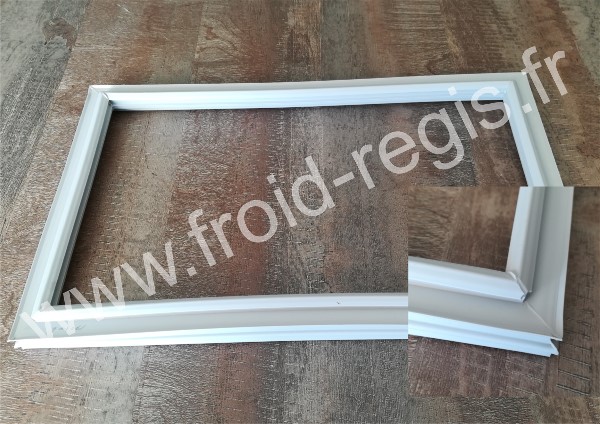

Door gasket for FM-60KE-HC CM50KE-HC code 3Y8291P02 Thank you to specify |
73 |
Shipping out in stock or 48h |
| 03 | HOF-F03-15 |
enlarge |
Door gasket for FM-80KE FM-150KE CM-140KE for FM-80KE(HC) FM-120KE(HC) code 3Y8291P02 Thank you to specify |
127 |
Shipping out in stock or 48h |
Other parts price on request
Accessories :
| Num. | References | Photos | Designations | Prices € excluding VAT |
|
|---|---|---|---|---|---|
| 04 | HOF-N04 |
 enlarge |
Inlet hose for FM - code P03534-01 Thank you to specify |
41 |
Shipping out in stock or 48h |
| 05 | HOF-N05 |
 agrandir |
Outlet hose for FM - code 452365-01 Thank you to specify |
55 |
Shipping out in stock or 48h |
Other parts price on request
