home / Spare parts / Flake ice machines / SIMAG / Serial SP

SPARE PARTS SIMAG
models for flake ice machines

SP125 SP255 SPN125 SPN255

Prices in Euros excluding VAT - Tarif 2024/2025 - prices may be revised whithout notice - not including installation.

Spare parts original, below list of wear parts The most common, we can supply all other parts on request.

Define well when ordering the reference, the serial number and the gas used by your machine.

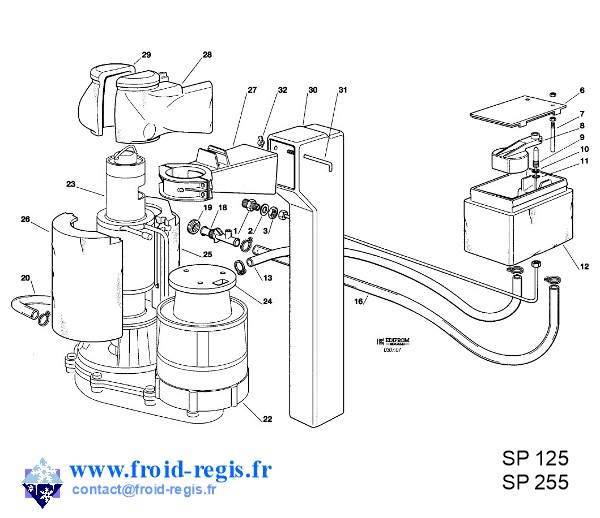

Ice production :

Num.	References	Photos	Designations	Prices € excluding VAT

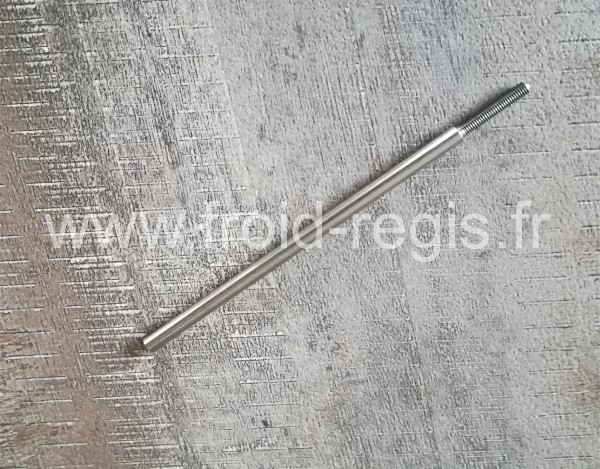

07	ICF107	agrandir	Water level metal pin code 29070018 replace code 72421506 Thank you to specify the model and serial number of your machine they are indispensable	33	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

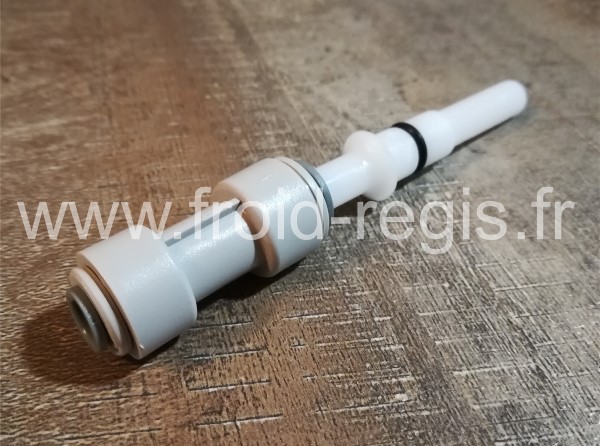

08	ICF108R	agrandir	Retrofit kit for nozzle water inlet in plastic code 06074200 replace code 79315300 Thank you to specify the model and serial number of your machine they are indispensable	114	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

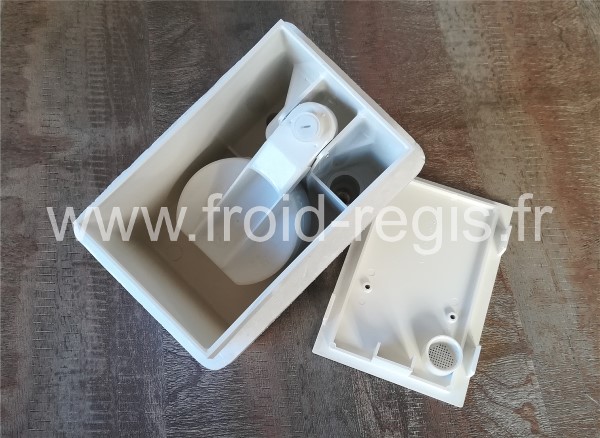

12	ICF112	agrandir	Water reservoir ASSY code 79312601 or 66045900 Thank you to specify the model and serial number of your machine they are indispensable	207	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
22	ICF122	agrandir	Full gear motor for code 79422513R Thank you to specify the model and serial number of your machine they are indispensable	1 665	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

Other parts price on request

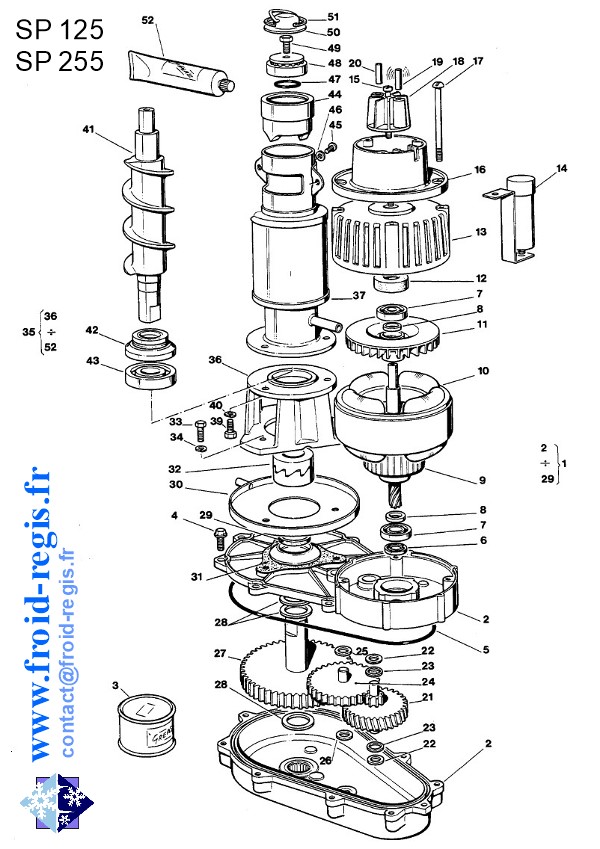

Reducer / Evaporator :

Num.	References	Photos	Designations	Prices € excluding VAT

	ICF-KIT-F	agrandir	Kit bearings, seals and grease for endless screw (to replace every 5 years) parts containing : 44(47+48), 43, 42 et 52. Thank you to specify the model and serial number of your machine they are indispensable	975	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
48	ICF348	agrandir	Upper bearing with Bearings parts containing : 48, 47 et 44 code 06072000 Thank you to specify the model and serial number of your machine they are indispensable	622	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

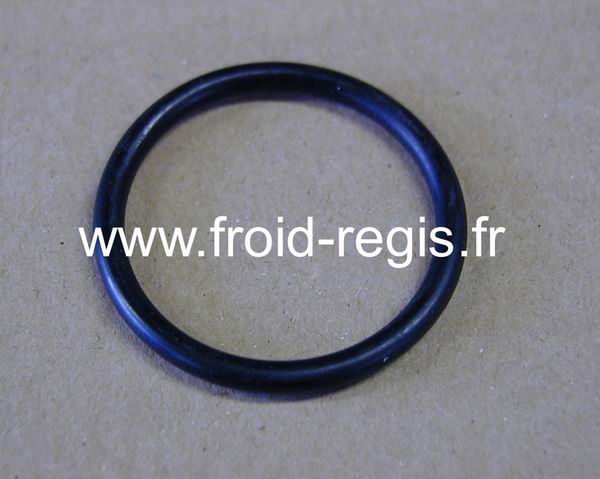

47	ICF347	agrandir	Ring seal code 64004101 or 64010901 Thank you to specify the model and serial number of your machine they are indispensable	28	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

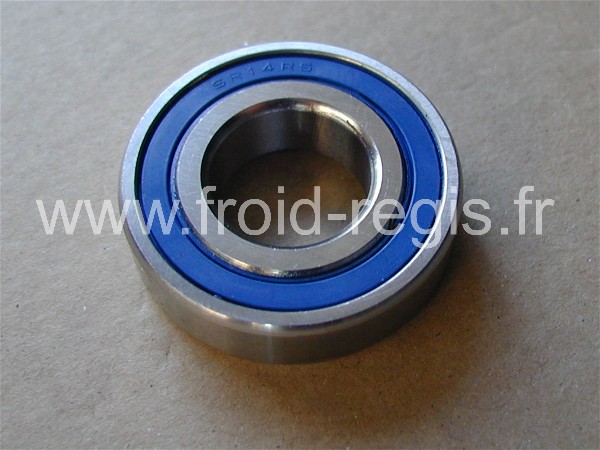

43	ICF343	agrandir	lower bearing code 67001101 Thank you to specify the model and serial number of your machine they are indispensable	205	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

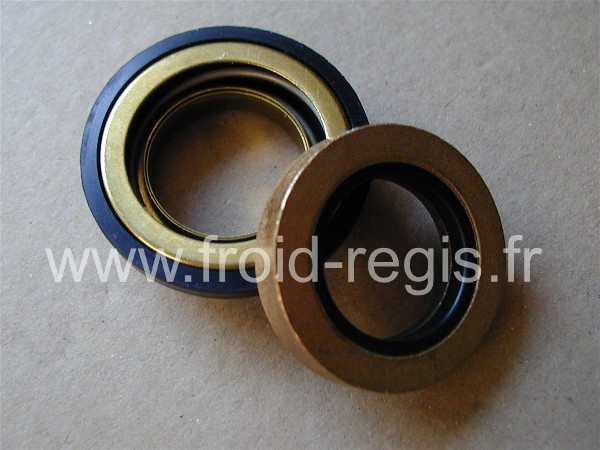

42	ICF342	agrandir	Water seal code 64004000 Thank you to specify the model and serial number of your machine they are indispensable	155	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
52	ICF352	agrandir	Nofreezing grease 100 ml - Food grade NSF H1 code 26361200 Technical data sheet Pdf	59	Shipping out Metropolitan France. "click here". in stock or 48h
41	ICF341	agrandir	endless screw code 72405207 Thank you to specify the model and serial number of your machine they are indispensable	449	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

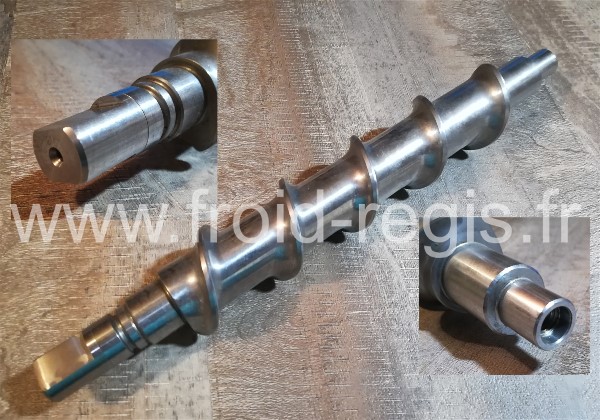

41	ICF341A	agrandir	endless screw code 72405206 Thank you to specify the model and serial number of your machine they are indispensable	707	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
41	ICF341B	agrandir	endless screw code 72405208 Thank you to specify the model and serial number of your machine they are indispensable	707	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

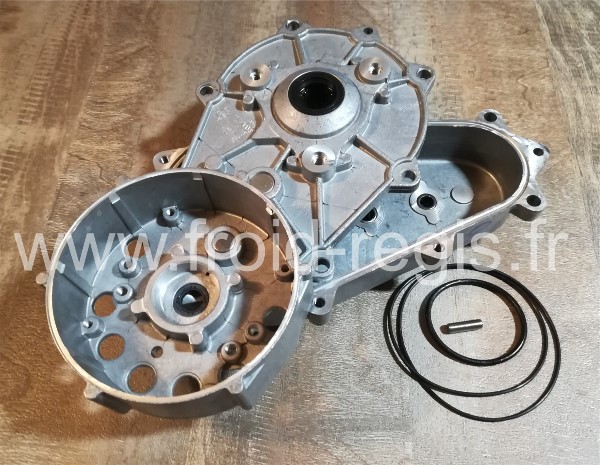

02	ICF302	agrandir	Case ASSY for gears code 00101501 Thank you to specify the model and serial number of your machine they are indispensable	479	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

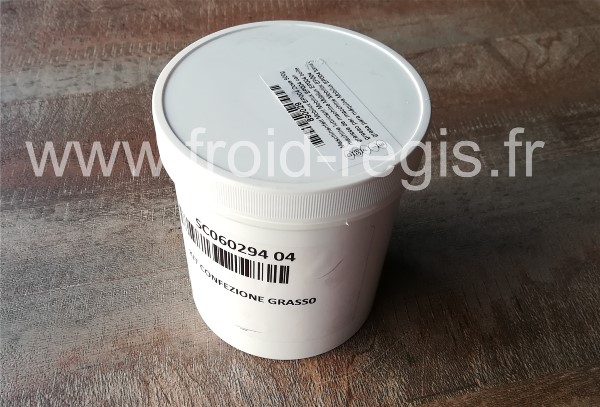

03	ICF303	enlarge	Grease 0,5 kg code 06029404 Thank you to specify the model and serial number of your machine they are indispensable	136	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

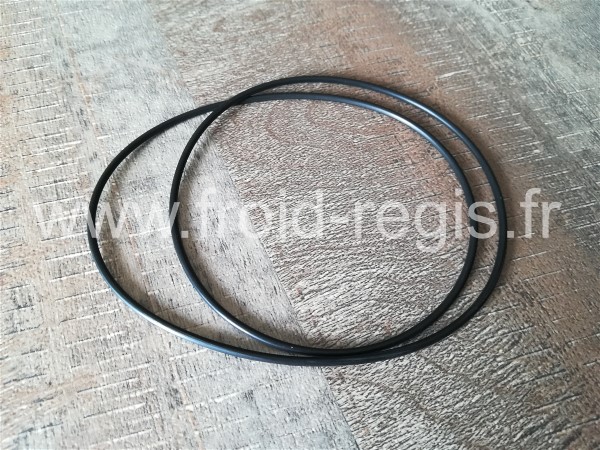

05	ICF305	enlarge	O ring code 64008400 Thank you to specify the model and serial number of your machine they are indispensable	35	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

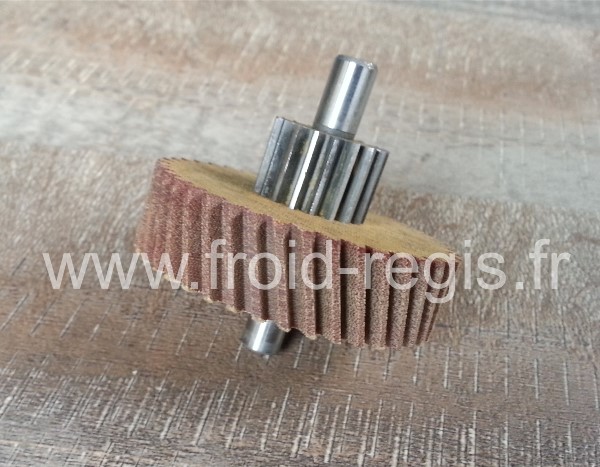

21	ICF321	agrandir	1St gear code 65116000 Thank you to specify the model and serial number of your machine they are indispensable	119	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

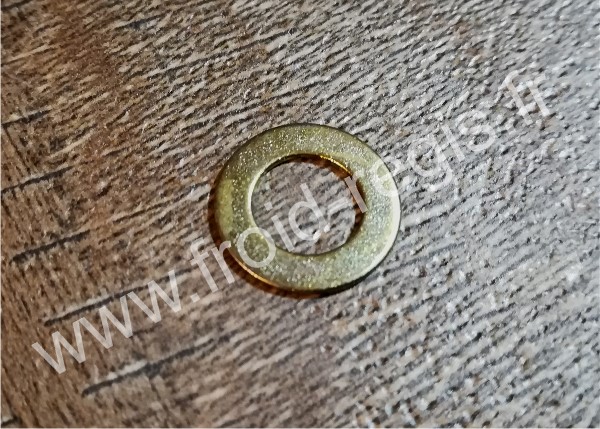

22	ICF322	agrandir	Trust washer 0,8 mm int.8,5 x ext.14 mm code 44180005 Thank you to specify the model and serial number of your machine they are indispensable	24	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

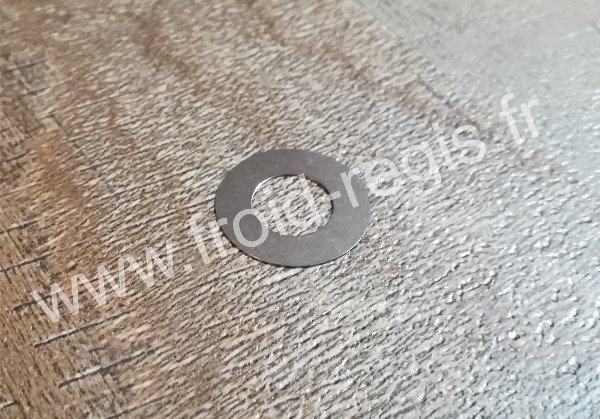

23	ICF323	agrandir	Trust washer 0,3 mm int.8,5 x ext.14 mm code 44180006 Thank you to specify the model and serial number of your machine they are indispensable	28	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

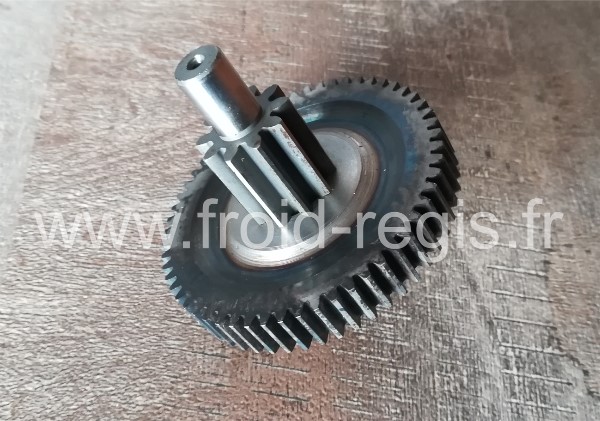

24	ICF324	enlarge	2nd gear code 65116100 Thank you to specify the model and serial number of your machine they are indispensable	181	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

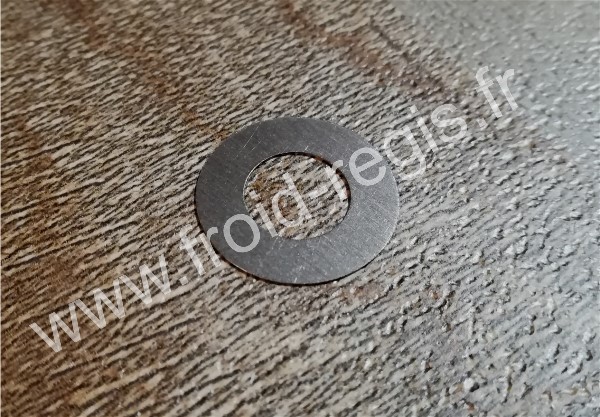

25	ICF325	agrandir	Trust washer 0,3 mm int.10 x ext.14 mm code 44180008 Thank you to specify the model and serial number of your machine they are indispensable	20	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

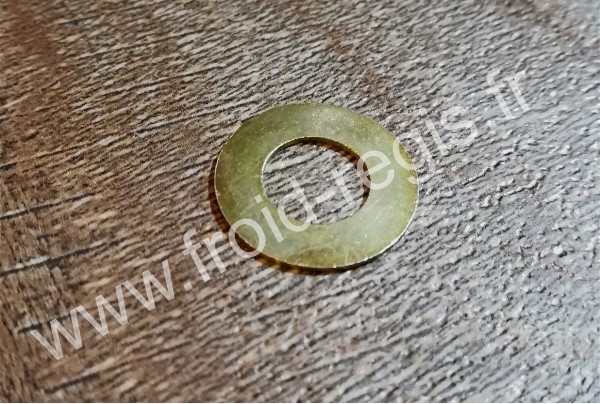

26	ICF326	agrandir	Trust washer 0,8 mm int.10 x ext.19 mm code 44180007 Thank you to specify the model and serial number of your machine they are indispensable	23	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

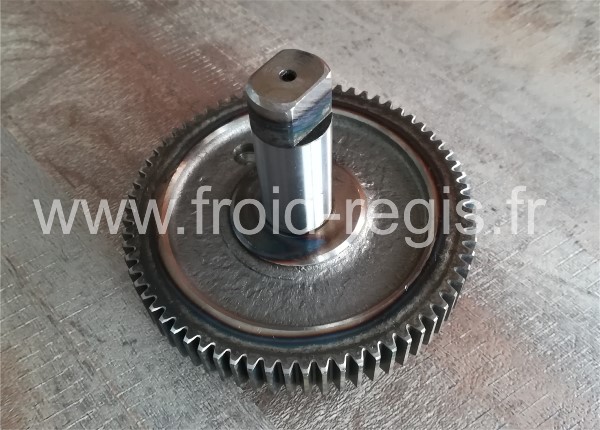

27	ICF327	enlarge	Output gear code 65116201 Thank you to specify the model and serial number of your machine they are indispensable	229	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

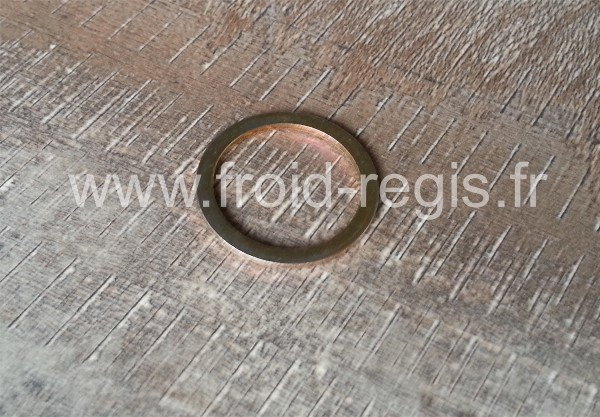

28A	ICF328A	agrandir	Trust washer 1,5 mm int.23 x ext.29 mm code 44180800 Thank you to specify the model and serial number of your machine they are indispensable	28	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

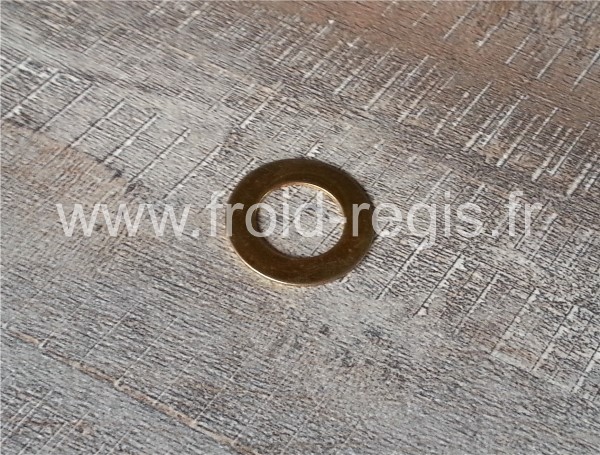

28B	ICF328B	agrandir	Trust washer 0,8 mm int.13 x ext.22 mm code 03140804 Thank you to specify the model and serial number of your machine they are indispensable	29	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
32	ICF332	agrandir	Kit coupling code 06035900 Thank you to specify the model and serial number of your machine they are indispensable	149	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

Other parts price on request

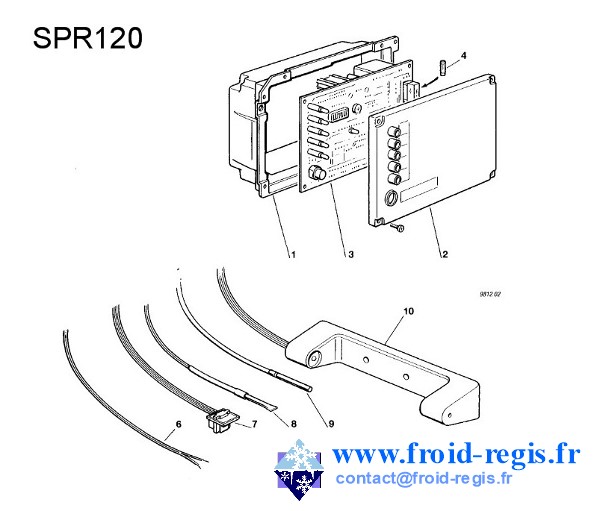

Control :

Num.	References	Photos	Designations	Prices € excluding VAT

3	ICF203B	enlarge	Kit electronic card ''NTC'' with probes condensor, evaporator water and adaptator ''NTC'' code 06071111 Thank you to specify the model and serial number of your machine they are indispensable	799	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

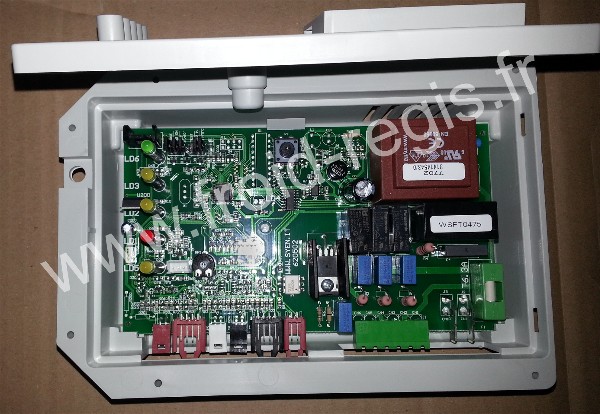

3	ICF203A	enlarge	Electronic card ''NTC'' - 2011 F80c-F125c code 81414543 F120-F200 code 62046215 Thank you to specify the model and serial number of your machine they are indispensable	432	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

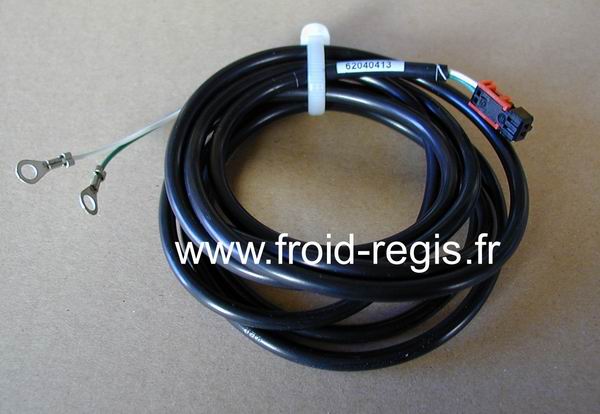

6	ICF206	enlarge	Sensor cable water level for old card ''PTC'' code 62040413 Thank you to specify the model and serial number of your machine they are indispensable	34	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

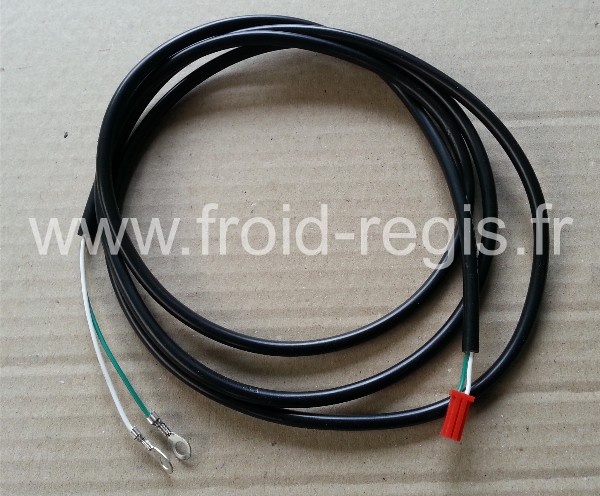

6	ICF206A	enlarge	Sensor cable water level for new card ''NTC'' code 62051902 Thank you to specify the model and serial number of your machine they are indispensable	39	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
7	ICF207	enlarge	Rotation sensor hall effect sensor code 62040403 Thank you to specify the model and serial number of your machine they are indispensable	81	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

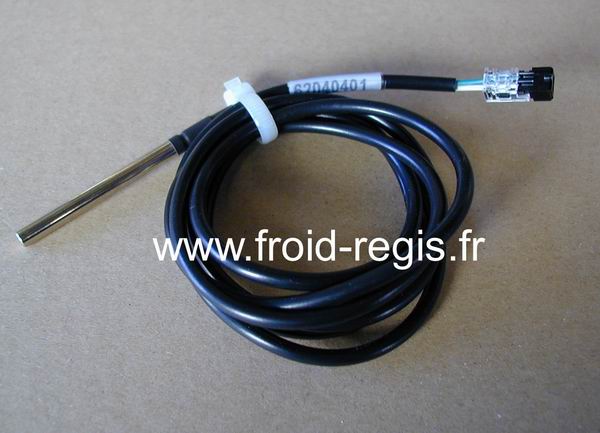

8	ICF208	enlarge	Condenser probe for old card ''PTC'' code 62040401 Thank you to specify the model and serial number of your machine they are indispensable	41	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
8	ICF208A	enlarge	Condenser probe for new card ''NTC'' code 62051904 Thank you to specify the model and serial number of your machine they are indispensable	46	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

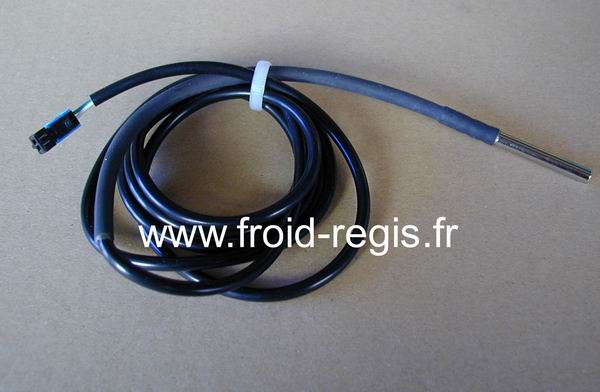

9	ICF209	enlarge	evaporator probe for old card ''PTC'' code 62040410 Thank you to specify the model and serial number of your machine they are indispensable	49	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

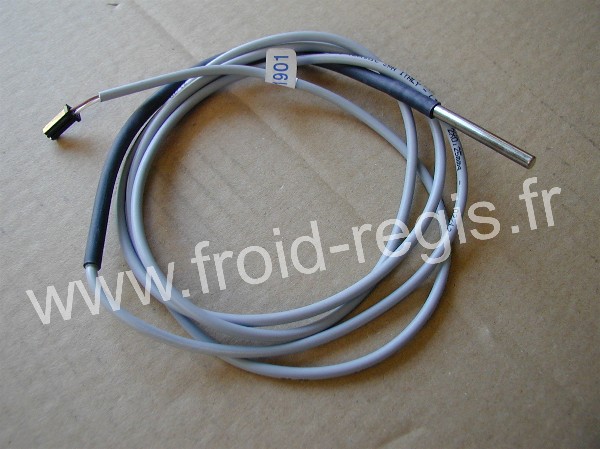

9	ICF209A	enlarge	evaporator probe for new card ''NTC'' code 62051901 Thank you to specify the model and serial number of your machine they are indispensable	54	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
10	ICF210	enlarge	Ice level sensor Thank you to specify the model and serial number of your machine they are indispensable	144	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

Other parts price on request

Chiller air-cooled :

Parts price on request

Chiller water-cooled :

Parts price on request

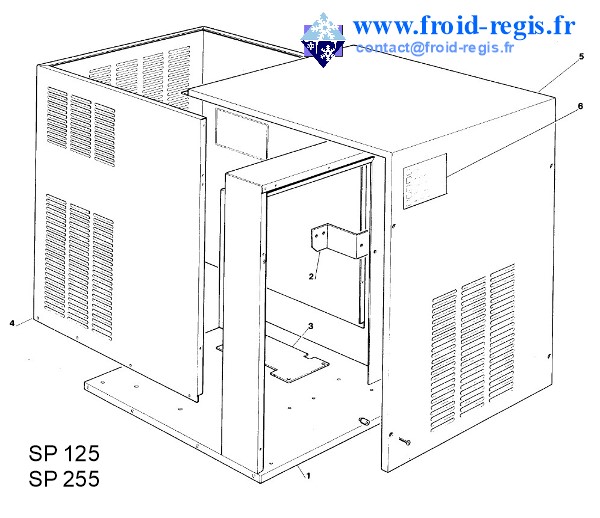

bodywork :

Parts price on request
