Icematic N Series – N15-N140
Spare parts for Icematic N Series – N15-N140. Check your machine model and the part number before ordering.

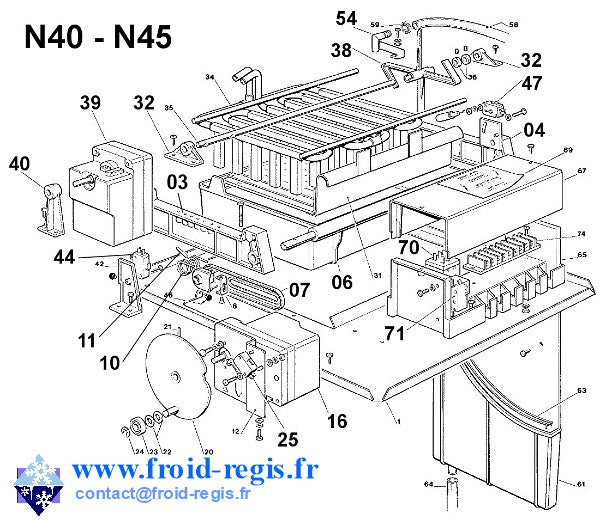

Diagram N15-N140 – EVAPORATOR & CUVETTE
| Ref. | Part number | Photo | Description | Price € excl. VAT | Action |
|---|---|---|---|---|---|
| 88 | ICE288N140 |
N140 Cup Return Spring |
21,60 € | in stock | |
| 71 | ICE271 |
Storage Thermostat |
58,80 € | in stock | |
| 70 | ICE270 |
FINDER 60.62 8-pin or 60.63 11-pin Ejection Relay |
49,20 € | in stock | |
| 54 | ICE254 |
Water inlet support except N140-150 code 25300000 |
8,40 € | in stock | |
| 47 | ICE247 |
Water level micro switch with polystyrene float code 81409179 |
57,60 € | in stock | |
| 44 | ICE244 |
Unmolding microswitch code 19410209 |
18,00 € | in stock | |
| 40 | ICE240 |
Agitator motor support bearing code 25725439 |
6,00 € | in stock | |
| 39 | ICE239 |
Paddle agitator geared motor 50 RPM code 19440059 |
92,40 € | in stock | |
| 38 | ICE238 |
Stirring paddle (unit price) code 25545521 |
9,60 € | in stock | |
| 32 | ICE232 |
Agitator support bearing (pair) part no. 25726115 |
10,80 € | in stock | |
| 25 | ICE225 |
Micro switch tilt stop code 19410209 |
18,00 € | in stock | |
| 16 | ICE216N140ASSY |
Complete basin tilting gear motor 0.7 RPM - ANT for N/ICN/GP 140-150 |
248,40 € | in stock | |
| 16 | ICE216N45ASSY |
Complete tilting geared motor with support, plate and microswitch 1 RPM - AN |
260,40 € | in stock | |
| 16 | ICE216N25ASSY |
Complete tilting geared motor with support, plate and microswitch 1 RPM - GOLD |
247,20 € | in stock | |
| 11 | ICE211 |
Rocker shaft part number 25260256 |
12,00 € | in stock | |
| 10 | ICE210N140 |
Rocker arm spring N140 code 25474601 |
21,60 € | in stock | |
| 10 | ICE210 |
Rocker Lever Spring Code 25474600-25474602 |
19,20 € | in stock | |
| 07 | ICE207N140 |
N140 metal tipper lever |
58,80 € | in stock | |
| 07 | ICE207 |
Bowl tilt lever (plastic) code 25440110 |
24,00 € | in stock | |
| 06 | ICE206N140 |
Complete tipping bin for N/ICN 12-22-140-150 Length ~680 mm |
334,80 € | in stock | |
| 06 | ICE206N90L |
Complete tilting bin for N/ICN 90L-90GS Lg. ~455 mm |
354,00 € | in stock | |
| 06 | ICE206N90 |
Full tipping trough for N/ICN/GP 70-75-80-90 L. ~455 mm |
226,80 € | in stock | |
| 06 | ICE206N55L |
Complete tilting bin for N/ICN 55L-55GS-65 Lg. ~275 mm |
224,40 € | in stock | |
| 06 | ICE206N45L |
Full tilting bin for N/ICN 45L-45GS Lg. ~275 mm |
222,00 € | in stock | |
| 06 | ICE206N45 |
Complete tilting bin for N/ICN/GP 40-45-50-50BI-55 Lg. ~275 mm |
213,60 € | in stock | |
| 06 | ICE206N35 |
Complete tilting bin for N/ICN/GP 30-35 Lg. ~165 mm code 81403007 |
177,60 € | in stock | |
| 06 | ICE206N25 |
Complete tipping bucket for N/ICN/GP 15-20-20L-25-25L-25GS Length ~125 mm code 81401 |
165,60 € | in stock | |
| 04 | ICE204 |
Evaporator bracket with float bracket part number 25726124 replaces 25726122 |
20,40 € | in stock | |
| 03 | ICE203 |
Evaporator support for tilting lever side code 25726123 replaces 25726121 |
19,20 € | in stock |
Complete basin tilting gear motor 0.7 RPM - ANT for N/ICN/GP 140-150
248,40 € excl. VAT
Complete tilting geared motor with support, plate and microswitch 1 RPM - AN
260,40 € excl. VAT
Complete tilting geared motor with support, plate and microswitch 1 RPM - GOLD
247,20 € excl. VAT
Complete tipping bucket for N/ICN/GP 15-20-20L-25-25L-25GS Length ~125 mm code 81401
165,60 € excl. VAT
Evaporator bracket with float bracket part number 25726124 replaces 25726122
20,40 € excl. VAT

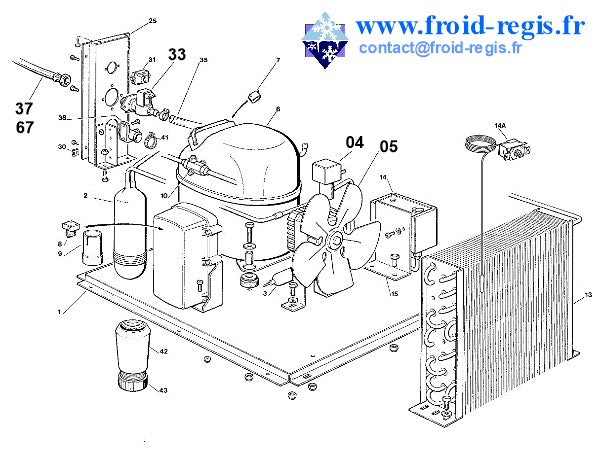

Diagram N15-N140 – AIR-COOLED UNIT
| Ref. | Part number | Photo | Description | Price € excl. VAT | Action |
|---|---|---|---|---|---|
| ICE577 |
Hose clamp |
2,40 € | in stock | ||
| 67 | ICE567 |
Water drain hose Lg. 2 m |
13,20 € | in stock | |
| 37 | ICE537 |
Water inlet hose, length 2.5 m |
18,00 € | in stock | |
| 33 | ICE533 |
Water inlet solenoid valve (air condensation) |
32,40 € | in stock | |
| 14A | ICE514A |
RANCO K22-1529 Fan Thermostat |
90,00 € | in stock | |
| 05 | ICE555 |
25W Fan Motor |
58,80 € | in stock | |
| 05 | ICE545 |
16W fan motor - for N90-140 |
46,80 € | in stock | |
| 05 | ICE535 |
10 W Fan Motor - for N35-45-55-70 |
38,40 € | in stock | |
| 05 | ICE525 |
5W Fan motor - for N25 |
33,60 € | in stock | |
| 04 | ICE504 |
Solenoid coil for hot gas demolding Ø 14 mm code 19053101 |
43,20 € | in stock |

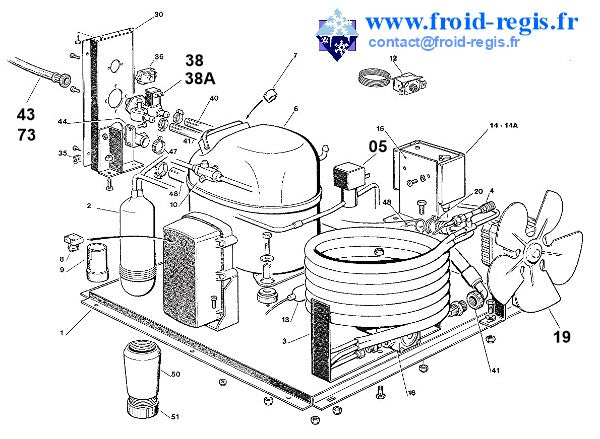

Diagram N15-N140 – WATER-COOLED UNIT
| Ref. | Part number | Photo | Description | Price € excl. VAT | Action |
|---|---|---|---|---|---|
| ICE577 |
Hose clamp |
2,40 € | in stock | ||
| 73 | ICE567 |
Water Drain Hose Lg. 2 m |
13,20 € | in stock | |
| 43 | ICE537 |
Water inlet hose, 2.5 m long |
18,00 € | in stock | |
| 38A | ICE538A |
Water inlet solenoid valve 2 coils (new water condensation model) |
70,80 € | in stock | |
| 38 | ICE538 |
Water inlet solenoid valve 1 coil (water condensation) |
52,80 € | in stock | |
| 19 | ICE555 |
25 W fan motor |
58,80 € | in stock | |
| 19 | ICE545 |
16 W Fan motor |
46,80 € | in stock | |
| 19 | ICE535 |
10 W Fan Motor |
38,40 € | in stock | |
| 19 | ICE525 |
5W fan motor |
33,60 € | in stock | |
| 05 | ICE504 |
Solenoid coil for hot gas defrost valve, 14 mm diameter |
43,20 € | in stock |

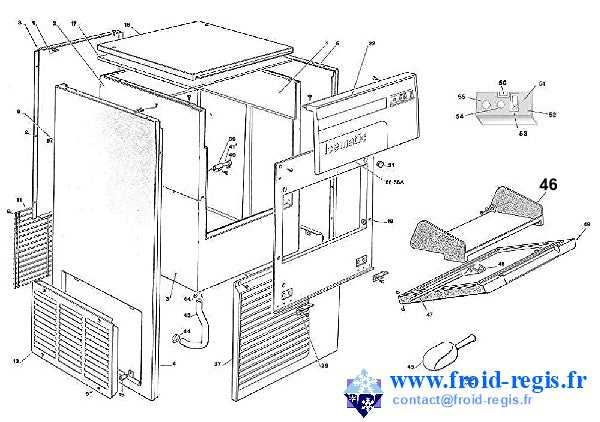

Diagram N15-N140 – CABINET
| Ref. | Part number | Photo | Description | Price € excl. VAT | Action |
|---|---|---|---|---|---|
| 46A | ICE637 |
Socket for door deflector mounting (pair) |
9,60 € | in stock | |
| 46 | ICE646N70 |
Door baffle for N70S-N90S-N90L Length 595 mm code 25260470 |
82,80 € | in stock | |
| 46 | ICE646N55 |
Door deflector for N25L-N35S-N45S-N45L-N55S-N55L Length 365 mm code 2526 |
70,80 € | in stock | |
| 46 | ICE646N25 |
Door deflector for N15S-N25S Length 345 mm code 25250099 |
58,80 € | in stock | |
| 49 | ICE649N70 |
Complete door for N70S-N90S-N90L code 81420528 |
On request | Contact us On request | |
| 49 | ICE649N55 |
Complete door for N25L-N35S-N45S-N45L-N55S-N55L code 81401650 |
On request | Contact us On request | |
| 49 | ICE649N25 |
Complete door for N15S-N25S code 81401649 |
On request | Contact us On request |
Door deflector for N25L-N35S-N45S-N45L-N55S-N55L Length 365 mm code 2526
70,80 € excl. VAT
