ICE-M020
Circulation water pump N131-201-301-401-501 Typo MH30F1 30W / 0.4 A / 230V-50Hz Ø outlet 12.7 mm shaft length 135 mm code 19550113
156,67 € HT
Prix Nets H.T. en Euros — Tarif 2026 — prix révisables sans préavis — installation non comprise.
icematic-series-nm-n131-n501
for ice makers
Genuine spare parts. List of the most common wear parts — other parts on request.
Please state the model, serial number and refrigerant of your machine when ordering.

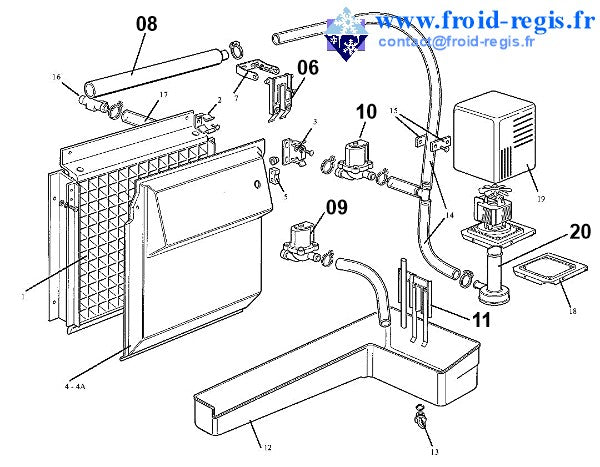

Schéma N131-N501 – PIÈCES MACHINE
| Ref. | Part number | Photo | Description | Price € excl. VAT | Action |
|---|---|---|---|---|---|
| 20 | ICE-M020 |
Circulation water pump N131-201-301-401-501 Typo MH30F1 30W / 0.4 A / 230V-50Hz Ø outlet 12.7 mm shaft length 135 mm code 19550113 |
156,67 € | in stock | |
| 10 | ICE-M2013 |
Cleaning solenoid valve for N131 code 19865598 Please provide your machine's model and serial number, as they are essential |
62,50 € | in stock | |
| 10 | ICE-M010B |
N201-301-401-501 Flushing Solenoid Valve part number 19866540 |
130,00 € | in stock | |
| 12 | ICE-M012 |
Water tank N131 - code 81453705 |
95,83 € | in stock | |
| 11 | ICE-M011 |
Water level sensor N131-201-301-401-501 code 81453590-81453796 Please provide your machine's model and serial number, as they are essential. |
54,17 € | in stock | |
| 12 | ICE-M012A |
Water tank N201-301-401-501 code 25820125 |
68,33 € | in stock | |
| 20 | ICE-M020A - N131-201-301-401-501 GRE 30W / 230V-50Hz Water circulation pump outlet Ø 13 mm shaft length 135 mm code 64042300 | 232,50 € | in stock | ||
| 9 | ICE-M009 |
N131-201-301-401-501 fill solenoid valve code 198655002 |
22,50 € | in stock | |
| 6 | ICE-M006 |
Ice Thickness Sensor (all models) code 81453434 |
57,50 € | in stock | |
| 4A | ICE-M004B |
N401-501 valve ASSY - code 81453651 |
149,17 € | in stock | |
| 4A | ICE-M004A |
Valve ASSY N201-301 - code 81453630 |
127,50 € | in stock | |
| 4A | ICE-M004 |
N131 flap ASSY - code 81453692 |
120,83 € | in stock | |
| 3 | ICE-M003 |
Flap support (all models) code 25726473 |
12,50 € | in stock | |
| 10 | ICE-M010A |
Solenoid valve cleaning replacement kit N201-301-401-501 code 81454760 |
On request | Contact us On request | |
| 8 | ICE-M018 |
Water Diffusion Ramp N201-301-401-501 code 81553575 |
On request | Contact us On request | |
| 8 | ICE-M008 |
Water distribution manifold N131-192 code 81453460 |
On request | Contact us On request |
ICE-M2013
Cleaning solenoid valve for N131 code 19865598 Please provide your machine's model and serial number, as they are essential
62,50 € HT
ICE-M010B
N201-301-401-501 Flushing Solenoid Valve part number 19866540
130,00 € HT
ICE-M012
Water tank N131 - code 81453705
95,83 € HT
ICE-M011
Water level sensor N131-201-301-401-501 code 81453590-81453796 Please provide your machine's model and serial number, as they are essential.
54,17 € HT
ICE-M012A
Water tank N201-301-401-501 code 25820125
68,33 € HT
ICE-M020A - N131-201-301-401-501 GRE 30W / 230V-50Hz Water circulation pump outlet Ø 13 mm shaft length 135 mm code 64042300
232,50 € HT
ICE-M009
N131-201-301-401-501 fill solenoid valve code 198655002
22,50 € HT
ICE-M006
Ice Thickness Sensor (all models) code 81453434
57,50 € HT
ICE-M004B
N401-501 valve ASSY - code 81453651
149,17 € HT
ICE-M004A
Valve ASSY N201-301 - code 81453630
127,50 € HT
ICE-M004
N131 flap ASSY - code 81453692
120,83 € HT
ICE-M003
Flap support (all models) code 25726473
12,50 € HT
ICE-M010A
Solenoid valve cleaning replacement kit N201-301-401-501 code 81454760
On request
ICE-M018
Water Diffusion Ramp N201-301-401-501 code 81553575
On request
ICE-M008
Water distribution manifold N131-192 code 81453460
On request

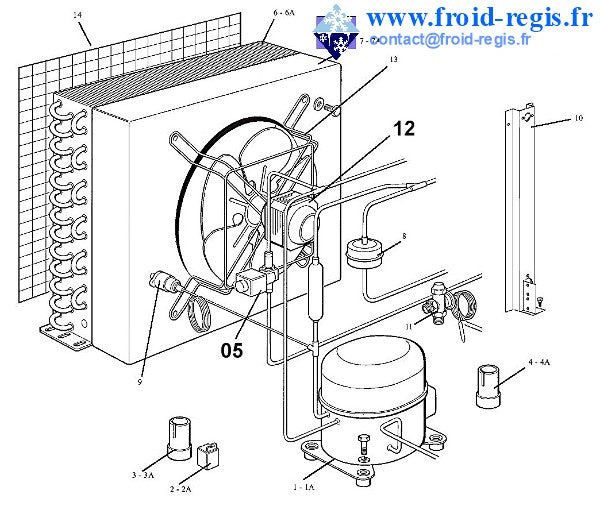

Schéma N131-N501 – GROUPE AIR
| Ref. | Part number | Photo | Description | Price € excl. VAT | Action |
|---|---|---|---|---|---|
| - | ICE567 |
2 m Drainage Hose |
9,17 € | in stock | |
| - | ICE537 |
Water inlet hose length 2.5m |
12,50 € | in stock | |
| 12 | ICE-M112 |
Condenser fan motor N131-201-301-401-501 code 18562524 |
155,00 € | in stock | |
| 5 | ICE-M105 |
N131-201-301-401-501 (Hot Gas) De-moulding Solenoid Coil |
30,00 € | in stock |
ICE567
2 m Drainage Hose
9,17 € HT
ICE537
Water inlet hose length 2.5m
12,50 € HT
ICE-M112
Condenser fan motor N131-201-301-401-501 code 18562524
155,00 € HT
ICE-M105
N131-201-301-401-501 (Hot Gas) De-moulding Solenoid Coil
30,00 € HT

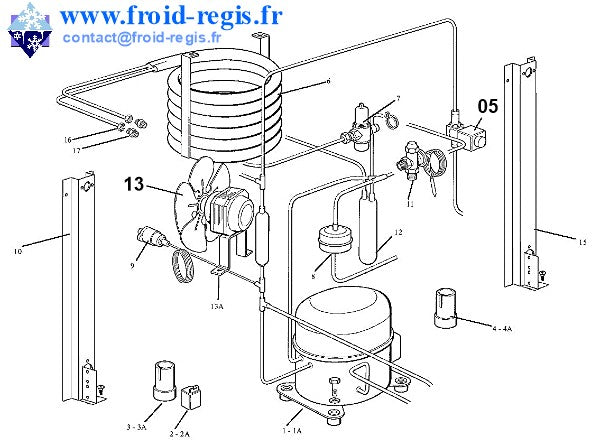

Schéma N131-N501 – GROUPE EAU
| Ref. | Part number | Photo | Description | Price € excl. VAT | Action |
|---|---|---|---|---|---|
| - | ICE567 |
Water drain hose Lg. 2 m |
9,17 € | in stock | |
| - | ICE537 |
Water inlet hose, length 2.5 m |
12,50 € | in stock | |
| 13 | ICE-M113 |
N131-201-301-401-501 Compressor Fan |
54,17 € | in stock | |
| 5 | ICE-M105 |
N131-201-301-401-501 Demolding Solenoid Valve Coil (hot gas) |
30,00 € | in stock |
ICE567
Water drain hose Lg. 2 m
9,17 € HT
ICE537
Water inlet hose, length 2.5 m
12,50 € HT
ICE-M113
N131-201-301-401-501 Compressor Fan
54,17 € HT
ICE-M105
N131-201-301-401-501 Demolding Solenoid Valve Coil (hot gas)
30,00 € HT

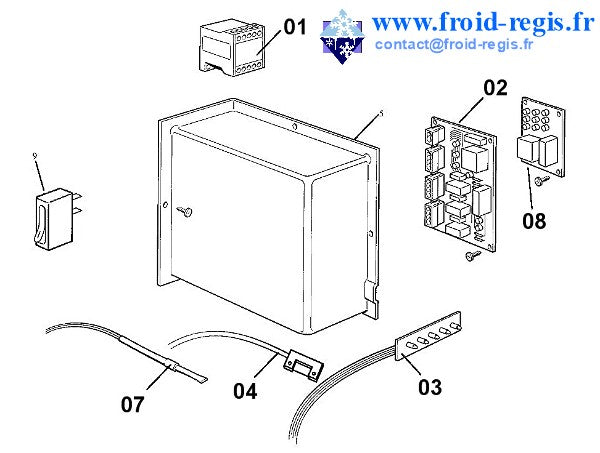

Schéma N131-N501 – ÉLECTRONIQUE
| Ref. | Part number | Photo | Description | Price € excl. VAT | Action |
|---|---|---|---|---|---|
| 8 | ICE-M708 |
N401-501 timing board code 33580173 |
129,17 € | in stock | |
| 7 | ICE-M707 |
Condenser probe N131-201-301-401-501 code 33580101 |
46,67 € | in stock | |
| 4 | ICE-M704/05 |
Magnetic sensor + magnet N131-201-301-401-501 code 33210018 + 19355007 |
49,17 € | in stock | |
| 3 | ICE-M703 |
Control Panel N131-201-301-401-501 code 33580151 |
60,83 € | in stock | |
| 2 | ICE-M702 |
Electronic card N131-201-301-401-501 code 33580150 |
248,33 € | in stock | |
| 1 | ICE-M701 |
Contactor 230V-50/60Hz N131-201-301-401-501 code 33730712 |
70,00 € | in stock |
ICE-M708
N401-501 timing board code 33580173
129,17 € HT
ICE-M707
Condenser probe N131-201-301-401-501 code 33580101
46,67 € HT
ICE-M704/05
Magnetic sensor + magnet N131-201-301-401-501 code 33210018 + 19355007
49,17 € HT
ICE-M703
Control Panel N131-201-301-401-501 code 33580151
60,83 € HT
ICE-M702
Electronic card N131-201-301-401-501 code 33580150
248,33 € HT
ICE-M701
Contactor 230V-50/60Hz N131-201-301-401-501 code 33730712
70,00 € HT

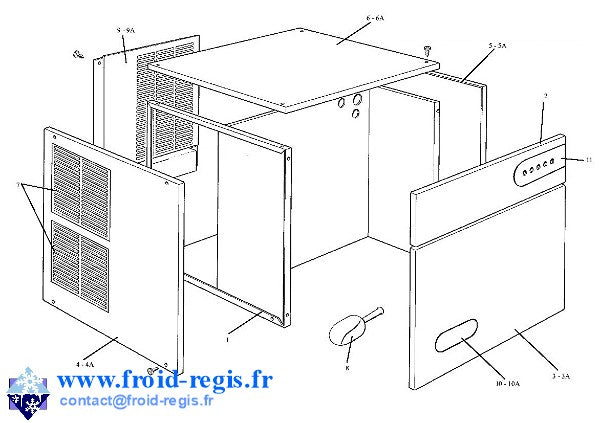

Schéma N131-N501 – CARROSSERIE
Parts available on request
Parts for this machine are available on request. Please specify the reference, serial number and refrigerant used.
